Color Coated Plate

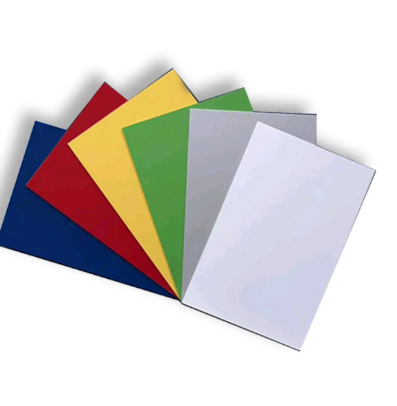

Color Coated Galvanized Steel Sheet PPGI
Galvanized based PPGI combines hot-dip zinc coating with color coating. Excellent anti-corrosion protection. Widely used for roofing sheets, sandwich panels, and C/Z purlins. Zinc coating from Z80 to Z275.
1. How to get samples to check the quality? How long can I get the samples?
After the price is confirmed, samples can be provided for your evaluation. After confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, and arrive within 3-5 days.
2.Do you provide samples ? is it free or extra ?
Answer:The sample could can provide for customer with free,but the courier freight will be covered by customer account.
3. Do you accept the third party inspection?
Answer: Yes absolutely we accept.
4.Can you accept customization?
Answer:Yes. If you have special requirements on products or packages, we can do customization for you.
5.How do you control the quality?
Answer:We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
High-Quality PPGI | Color-Coated Galvanized Steel Sheets | Fade-Resistant · Easy to Form · 25-Year Warranty
Made with premium galvanized steel substrates (Z100–Z275) and international-grade coatings, these sheets are ideal for roofing, sandwich panels, and home appliance casings. We offer OEM custom color matching services.
Product Introduction & Advantages
- Excellent Corrosion Resistance
The base metal adopts hot-dip galvanizing technology with a coating weight of over 120 g/m² (Z120). Its red rust resistance at cut edges is superior to conventional color-coated steel sheets. - Outstanding Formability
Passes T-bend test (≤3T) and reverse impact test, ensuring no coating peeling or cracking during profiling, bending and punching, thus meeting complex forming requirements. - Long-Lasting Fade Resistance
Topcoat uses high-performance polyester (HDP) or PVDF fluorocarbon coating with strong UV resistance. It maintains a gloss retention rate of over 90% even under harsh climatic conditions such as coastal and industrial areas. - Eco-Friendly Performance
Compliant with RoHS standards. Chrome-free passivation is available as an option, meeting green building certification requirements.
Product Specification
| Item | Specification Range | Remarks / Standard |
|---|---|---|
| Base Metal | Hot Dip Galvanized Steel (GI) | Conforms to ASTM A653 / JIS G3302 |
| Coating System | 2/1 (top coat 2 layers, back coat 1 layer) or 2/2 | Customizable for applications (construction / home appliances) |
| Coating Weight | 40 – 275 g/m² (Z40 – Z275) | Calculated on both sides. Z180 or above recommended for coastal areas |
| Thickness Range | 0.12 mm – 1.2 mm | Tolerance controlled at ±0.02 mm |
| Width Range | 600 mm – 1250 mm | Slitting available upon request |
| Coil Weight | 3 – 8 MT (standard coil) | Customizable per customer requirements |
| Top Coat Type | PE (Polyester), SMP (Silicone Modified Polyester), HDP (High Durability Polyester), PVDF (Fluorocarbon) | PVDF provides best fade resistance |
| Color | Full RAL series / Pantone | Customizable with customer color samples |
| Back Coat | Modified Polyester / Epoxy | Protects back side and improves adhesion |
| Hardness | ≥ HB | Conforms to GB/T 13448 or relevant international standards |
Application Scenarios
Construction & Roofing
Industrial workshops, warehouses, stadiums, and residential building roofs.
Recommended products: Corrugated sheets, glazed tiles, standing seam systems.
Recommended products: Corrugated sheets, glazed tiles, standing seam systems.
Panels & Wall Cladding
Cleanroom panels, rock wool sandwich panels, cold storage panels, exterior wall insulation & decorative panels.
Recommended features: High flatness, excellent fire resistance.
Recommended features: High flatness, excellent fire resistance.
Home Appliances & Electrical
Refrigerator side panels, washing machine cabinets, distribution boxes, lighting fixtures.
Recommended features: Flawless surface finish, excellent printability.
Recommended features: Flawless surface finish, excellent printability.
Transportation & Industry
Automotive parts, ventilation ducts, grain silos, storage racks.
Recommended features: High strength, scratch resistance.
Recommended features: High strength, scratch resistance.
Processing Services & Customization Capabilities
- Slitting & Cut-to-Length Service: Precision cutting with burrs controlled within 0.1 mm.
- Warehousing & Logistics: For overseas export, products are packed with fumigated pallets, moisture-proof plastic film and steel strapping, suitable for long-distance ocean shipping.
- Sampling Service: Support small-batch trial orders and provide physical color samples. (Note: Free samples, freight collect)
Quality Control & Certifications
- In-line Production Inspection: Real-time monitoring with coating thickness gauges and colorimeters.
- Physical Performance Testing: Salt spray test (≥500 hours), boiling water resistance test, MEK rub test.
- Certifications: ISO 9001, SGS, CE, TÜV, etc.
