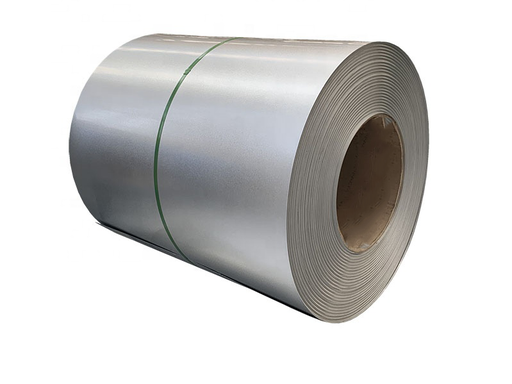

Aluminum Zinc Coated Steel Coil (Galvalume)
Aluminum-zinc-silicon-coated steel sheets (also known as Galvalume or aluminum-zinc alloy-coated steel sheets) use cold-rolled steel sheets as the base material. Through a hot-dip coating process, an alloy coating consisting of 55% aluminum, 43.4% zinc, and 1.6% silicon is applied to the surface of the steel sheet and cured at a high temperature of 600°C.
Aluminum Zinc Coated Steel Coil Specifications
| Parameter | Specification |
|---|---|
| Product Name | Aluminum Zinc Coated Steel Coil (Galvalume Steel Coil) |
| Base Material | Cold Rolled Steel |
| Coating Composition | 55% Al + 43.4% Zn + 1.6% Si |
| Applicable Standards | ASTM A792 / A792M, JIS G3321, EN 10327, GB/T 3830-2006 |
| Steel Grades | DX51D+AZ, DX52D+AZ, DX53D+AZ, S250GD+AZ, S350GD+AZ, G550 |
| Thickness | 0.12mm – 2.0mm |
| Width | 600mm – 1500mm |
| Coating Weight | AZ30 – AZ200 g/m² (both sides) |
| Coil ID | 508mm / 610mm |
| Coil Weight | 3 – 25 tons |
| Surface Finish | Regular Spangle / Zero Spangle |
| Surface Treatment | Chromated / Anti-fingerprint / Oiled or Non-oiled |
| Packaging | Standard export packaging: inner kraft paper + waterproof film + outer galvanized steel sheet + steel straps |
| Delivery Time | 7 – 35 days |
| Standard | Grade |
|---|---|
| ASTM A792 | CS Type A/B/C, FS, DS, SS255, SS345 |
| EN 10327 | DX51D+AZ, DX52D+AZ, DX53D+AZ, S250GD+AZ, S350GD+AZ |
| JIS G3321 | SGLCC, SGLCD, SGLC400 |
| GB/T | Customized according to customer requirements |
